KTA-402 BACnet- Cabled VP2 Bundle

This bundle includes:

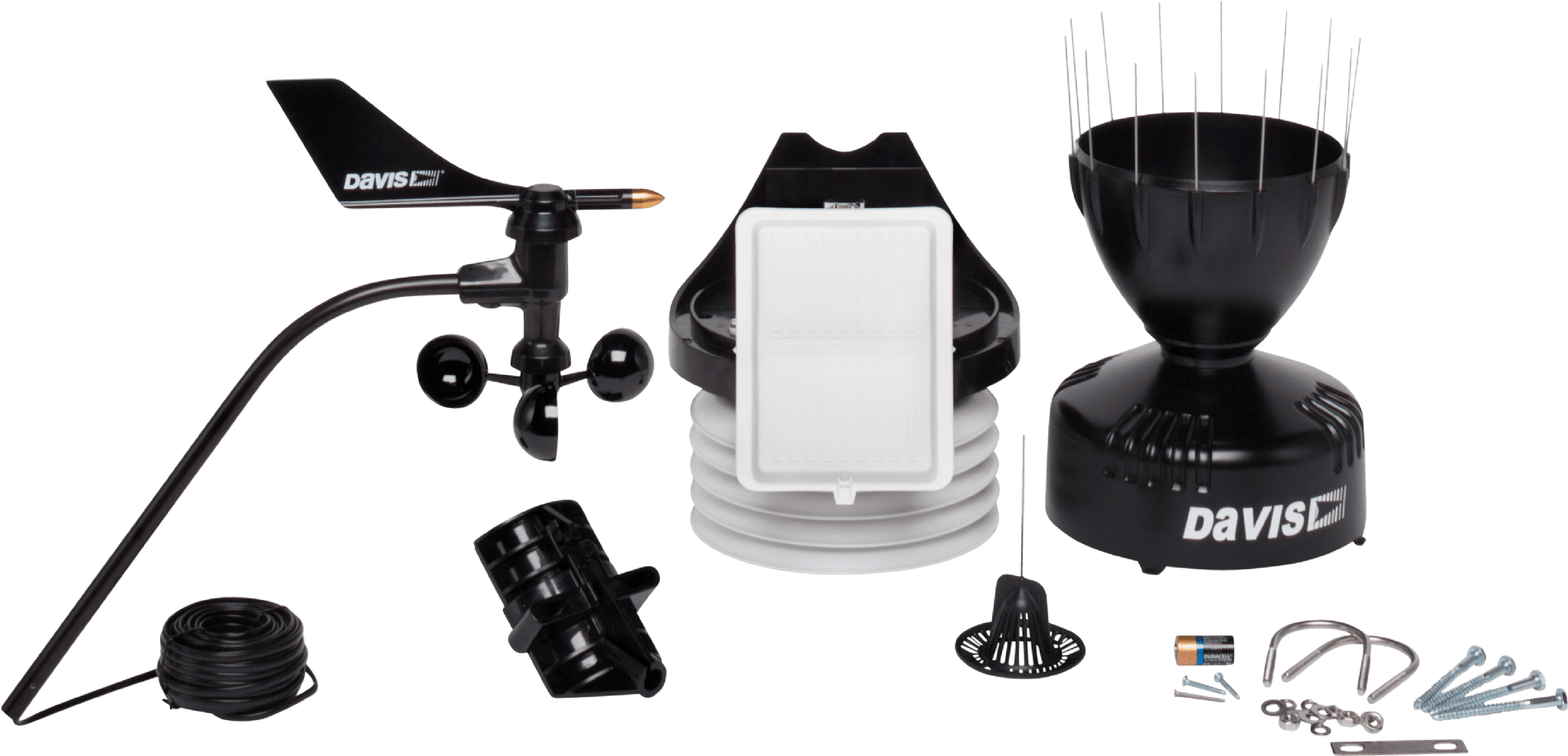

• 6322CM Vantage Pro 2 ISS
• 6316CUK Davis Vantage Pro 2 Cabled Envoy
• 6510SER Serial Data Logger
• KTA-402 BACnet MS/TP Weather Station Gateway

The KTA-402 BACnet MS/TP Weather Station Gateway connects a Davis Instruments Weather Station to a BACnet MS/TP network, specifically built to meet the needs of building automation systems.

This gateway provides a simple way to integrate your BACnet network with one of the following Davis weather stations:

• Cabled Vantage Pro 2
• Cabled Vantage Pro 2 Plus
• Wireless Vantage Pro 2
• Wireless Vantage Pro 2 Plus

The gateway connects to the weather station's console via the Davis WeatherLink cable (Weather Link for Vantage Pro Serial Logger) and becomes part of the BACnet network. This enables your SCADA system or other BACnet devices on the network to monitor and take action based on data such as wind speed, wind direction, temperature, and more.

Specification

• Power Supply: 12 - 36VDC
• Power Consumption: 1.2W @12V, 0.96W @24V
• Operating Temperature: 0 to 70°C
• Output: Two Digital outputs for alarms or control (0VDC or 3.3VDC)
• Protocol: BACnet MS/TP over RS-485 compatible
• BACnet network parameters are easily configurable by Web Interface, Software Application, or Bacnet Object.
• Supports BACnet device and object discovery.
• Allows you to configure unit conversions.
• Dimensions: 115 × 90 × 40 mm.
• The unit can be screwed to a panel or DIN rail mounted.

Documents:

• User Manual
• Collection of Wiring Diagrams for the weather station kits
• Vantage Serial Protocol Guide
